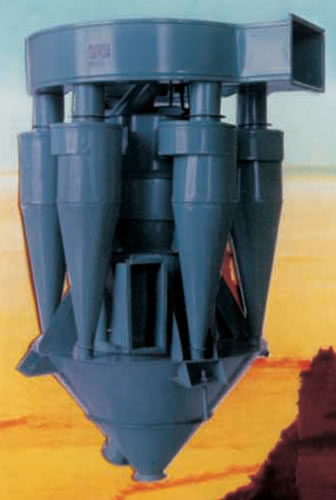

Powder Separator (Powder Concentrator)

Description of Powder Separator:
This powder separator, usually referred to as powder concentrator, is specially designed to classify clinker and raw materials in cement plant, and together with a ball mill, it can build up a closed-circuit grinding system. It can be used in a wide variety of fields, such as powder, cement, chemical industry, metallurgy, among others. Developed on the basis of technical improvement as well as practical requirements, our powder concentrator has the features of even and rapid material distribution, reliable and easy adjustment, high-efficiency classifying, convenient assembly, easy maintenance , stable performance, just to name a few.

Features of Powder Separator:
1. Innovative structure: it is an advanced combination of centrifugal, cyclone and double-rotor types. As a result, it can save a great deal of energy.
2. High efficiency and energy saving: materials are classified in different classification zones, and its unique material distribution structure ensures high-efficiency powder separation work. Its classification efficiency is more than 85%, and its electricity consumption is more than 30% less than that of a traditional one.
3. High adaptability: this powder separator can deal with particles in different sizes, so it can always get high-quality cement.
4. Able to effectively prevent dewing, it can be used in both humid and cold environments.
5. Multi-section lining plates have been employed to effectively prolong the working life of main motor.

Technical Parameters of Powder Separator:

Powder Model N500 N750 N1000 N1500 N2000 N2500 N3000 N3500 N4000
Output (t/h) 15~30 27~44 35~50 50~80 70~90 90~120 110~160 130~190 144~200
Max.feeding capacity (t/h) 90 135 180 270 360 450 540 630 720
Air volume (m3/h) 30000
~40000
45000
~55000
60000
~70000
90000
~110000
120000
~150000
150000
~180000
180000
~240000
210000
~240000
240000
~280000
Resistance 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8 1.6~1.8
Speed reducer Model KF128-K2-180 KF148-K2-200 B2SV5 B2SV5 B2SV6 B2SV6 B2SV7 B2SV7 B2SV8
Speed ratio 9.16 4.83 5.6 6.3 6.3 7.1 7.1 7.1 8
Motor Model Y180M-2 Y200L-4 Y250M-4 Y280M-4 Y315S-4 Y315M2-4 T315L2-4 Y355M2-4 Y355L2-4
Power(kw) 22 30 55 90 110 160 200 250 315
