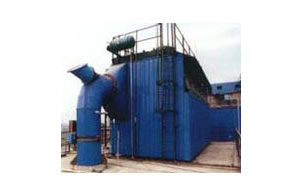

Air Tank Pulse Bag Dust Filter

Description of Air Tank Pulse Bag Dust Filter:
This air tank pulse bag dust filter is able to collect dust in different tanks, thus avoiding the secondary dust problem. It can deal with not only dusty gases with general dust concentration, but also dusty gases with 1000g/Nm3.











Technical Parameters of PPCS32-64 Series Air Tank Pulse Bag Dust Filter:

Model PPCS
32-3
PPCS
32-4
PPCS
32-5
PPCS
32-6
PPCS
64-4
PPCS
64-5
PPCS
64-6
PPCS
64-7
PPCS
64-8
Air processing capacity (m3/h ) 6900 8930 11160 13390 17800 22300 26700 31200 35700
Total filtration area (m2) 93 124 155 186 248 310 372 434 496
Net filtering area (m2) 62 93 124 155 186 248 310 272 434
Amount of dust collecting chamber 3 4 5 6 4 5 6 7 8
Total quantity of filter bag 96 128 160 192 256 320 384 448 512
Resistance of dust collecting bag filter(Pa) 1470-1770
Dust concentration of inlet air (g/m3 ) <200<1000
Dust concentration of discharged air (g/m3) <0.1
pressure bearing capacity of bag filter shell (Pa) 5000


Technical Parameters of PPCS96 Series Air Tank Pulse Bag Dust Filter:

Model
Technological parameters
PPCS96-4 PPCS96-5 PPCS
96-6
PPCS
96-7
PPCS
96-8
PPCS
96-9
PPCS
96-2×5
PPCS
96-2×6
PPCS
96-2×7
PPCS
96-2×8
PPCS
96-2×9
PPCS
96-2×10
Air processing volume (m3/h) 26800 33400 40100 46800 53510 60100 66900 80700 94100 107600 121000 134500
Air filtering speed (m/min) 1.2-2.0(The dust filtering speed varies depending on different dust collection points, and specific velocity needs referring to form1. )
Total filtering area (m2) 372 465 557 650 744 836 929 1121 1308 1494 1681 1868
Net filtering area(m2) 279 372 465 557 657 744 836 1028 1215 1401 1588 1775
Amount of dust collecting chamber 4 5 6 7 8 9 10 12 14 16 18 20
Amount of filtering bags 384 480 576 672 768 864 960 1152 1344 1536 1728 1920
Resistance of dust collecting bag filter(Pa) 1470-1770
Dust concentration of inlet air (g/m3 ) <1300
Dust concentration of discharged air (g/m3) <0.1
pressure bearing capacity of bag filter shell (Pa) 5000
compressed air for dust collecting Pressure (Pa) (5-7)×105
Air consumption (m3/min) 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.4 4.2 4.8 5.4 6.0
Pulse valve (with solenoid valve) Amount 4 5 6 7 8 9 10 12 14 16 18 20
Specification (inch) 2 1/2”
Lift valve (with air cylinder) Amount 4 5 6 7 8 9 10 12 14 16 18 20
Specification (mm) Diameter of lift valve: Ф725; diameter of air cylinder:Ф100
Rigid impeller feeder Feed opening: 400×400mm, rotating speed:22.5r/min, power of speed reducer:1.5kw, output: 40m3/h Feed opening: 350×350mm, rotating speed: 24.63r/min, power of speed reducer: 1.5kw, output: 30m3/h, 2 sets
Screw conveyer Specification Diameter: Ф400, output:38m3/h Diameter: Ф300, 2sets; output of each set: 21m3/h
Speed reducer Model: XWD5.5-7-1/59, power: 5. 5kw Model: XWD2.2-5-1/43,power: 2.2kw
Air slide conveyor When the dust concentration of feeding air is more than 700g/m3, environmental protection equipment, with air slide or large-size screw conveyor, should be utilized.
Controller of dust collecting program Both of the input and output voltages are 220 V.
Specifications and material of filter bag Diameter×length: Ф130×2450mm; weight of polyester needle felt: 450g/m2; use area: 120℃
Area of thermal insulating layer (m2) 110 120 130 140 150 160 175 210 245 280 315 350
Total weight (excluding thermal insulating layer) (kg) 8710 10100 12400 14100 15700 17700 21000 25200 29400 33600 37800 42000


Note:
1. The net filtering area in the above form means the filtering area when the dust collecting work is done by only dust chamber.
2. The air consumption in the form is the amount when centralized air supply is used, and if individual air supply mode is chosen, the air consumption in the form should be multiplied by coefficient 1.3.

Technical Parameters of PPCS (A)128 Series Air Tank Pulse Bag Dust Filter

model technological parameters PPCS(A)
128-6
PPCS(A)
128-
PPCS(A)
128-10
PPCA
128-2×6
PPCA
128-2×7
PPCA
128-2×8
PPCA
128-2×9
PPCA
128-2×10
PPCA
128-2×11
PPCA
128-2×12
PPCA
128-2×13
PPCA
128-2×14
Air processing capacity (m3/h) 67300 100900 112100 134600 157000 179400 201900 224300 247600 269100 291600 314000
Air filtering speed (m/min) 1.2-2.0(The dust filtering speed varies depending on different dust collection points, and specific velocity needs referring to form1. )
Total filtering area (m2) 935 1402 1558 1869 2181 2492 2804 3115 3427 3738 4050 4361
Net filtering area (m2) 779 1246 1402 1713 2025 2336 2648 2959 3271 3582 3894 4205
Amount of filtering chamber 6 9 10 12 14 16 18 20 22 24 26 28
Amount of filter bag 768 1152 1280 1536 1792 2084 2304 2560 2816 3072 3328 3584
Resistance of dust collecting(Pa) 1470-1770
Dust concentration of inlet  air (g/m3) <1300
Dust concentration of discharged air (g/m3) <0.1
pressure bearing capacity of bag filter shell (Pa) 6860
compressed air for dust collecting Pressure (Pa) (5-7)×105
Air consumption (m3/min) 3.6 5.4 6.0 7.0 8.3 9.5 10.7 12 13.1 14.3 15.5 16.7
Pulse valve (with solenoid valve) Amount 12 18 20 24 28 32 36 40 44 48 52 56
Specification (inch) 2 1/2”
Lift valve (with air cylinder) Amount 6 9 10 12 14 16 18 20 22 24 26 28
Specification (mm) Diameter of lift valve:Ф725; diameter of air cylinder: Ф100
Rigid impeller feeder Feed opening: 300×300mm; speed reducer:1.1kw; output:24m3/h specifications of electric double-plate valve: 305×915mm; Rotating speed: 75r/min; model of speed reducer:XWD4-7-1/3, power: 4kw,
Screw conveyer Specification Diameter: Ф300; output:21m3/h
Speed reducer Model: XWD2.2-5-1/43, power: 2.2kw
Air slide conveyor Slide specification: 250mm; when the dust concentration of feeding air is more than 700g/m3, environmental protection equipment, with air slide or large-size screw conveyor, should be utilized.
Controller of dust collecting program Both of the input and output voltages are 220 V.
Specifications and material of filter bag Diameter×length: Ф130×3060mm; weight of polyester needle felt: 450g/m2; use area: 120℃.
Area of thermal insulating layer (m2) 125 196 205 323 247 262 277 292 307 322 337 352
Total weight (excluding thermal insulating layer) (kg) 20100 26400 28900 36600 43900 50000 55400 60000 65400 72000 78000 84000


Note:
1. The net filtering area in the above form means the filtering area when the dust collecting work is done by only dust chamber.
2. The air consumption in the form is the amount when centralized air supply is used, and if individual air supply mode is chosen, the air consumption in the form should be multiplied by coefficient 1.3.
